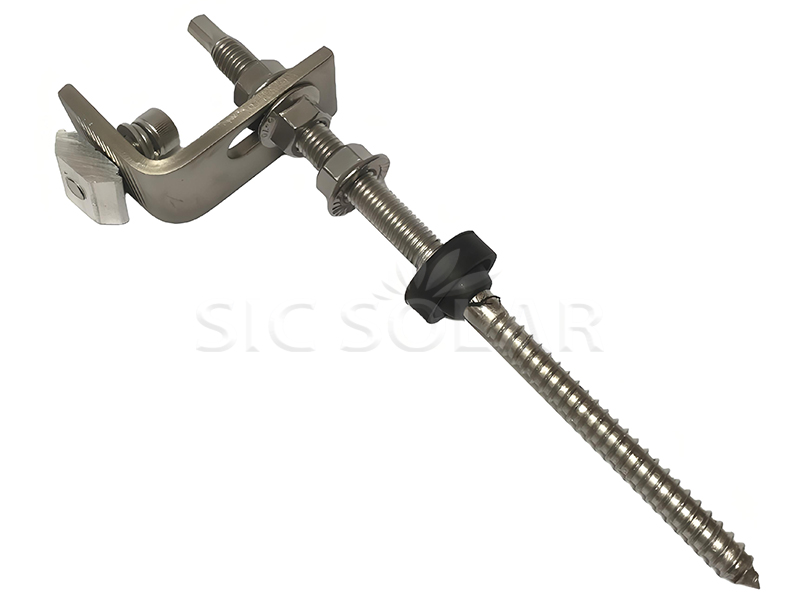

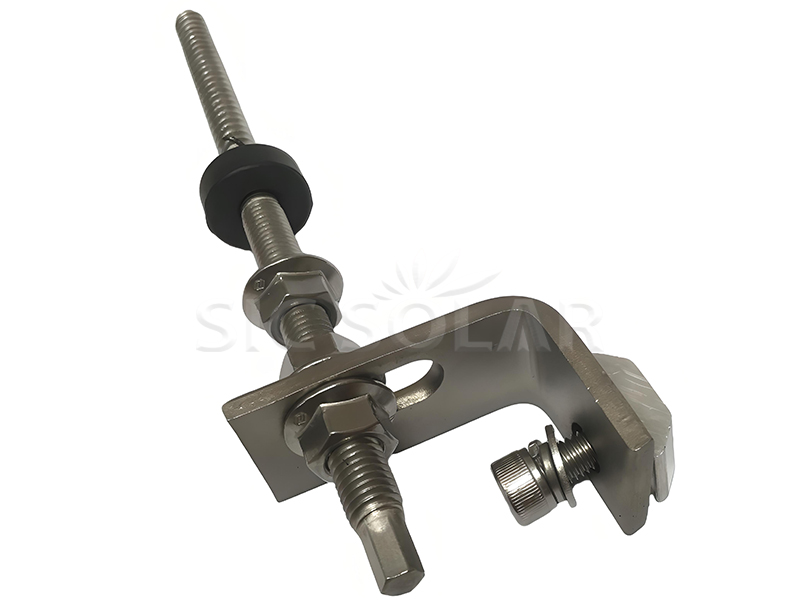

Parafuso de suspensão solar para viga de madeira com pés em aço inoxidável em forma de L

Os parafusos de fixação para vigas de madeira com pés em aço inoxidável em formato de L são componentes robustos para a instalação de painéis solares. Eles mantêm os painéis fixados às vigas de madeira por um longo período.

Marca:

SIC SOLAR

Nº do item.:

SIC-HB-SL

Roof

Detalhes técnicos Guia de Instalação Pacote Advantage FAQ

Local de instalação	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5 & Stainless Steel 304
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Warranty	10 years and 25 years service time

1️⃣ Encontre os pontos: Localize e marque a madeira sob o telhado, certificando-se de que o espaçamento esteja correto para suportar a carga.

2️⃣ Drill holes: Drill holes in the wood that fit the bolt threads.

3️⃣ Screw in bolts: Use a wrench to screw the bolts into the holes. Make sure they are tight and straight.

4️⃣ Attach L-feet: Put the L-shaped legs on the bolts, adjust the height, and tighten them with washers and nuts.

5️⃣ Put on rails: Attach the solar rails to the L-feet, make sure they line up, and tighten everything to the right amount.

Solar bracket package

☆ Fixação firme - O parafuso de suspensão adere perfeitamente ao aço.

☆ Lasts long – good stainless steel 304 means it will last for 10 years.

☆ Waterproof – The EPDM rubber keeps water out.

☆ Ready to go – The parts are put together, which saves you money on installation.

Related certificate

☆ Strength test – The mounts are tested to handle wind and snow.

☆ Aluminum certificate – AL6005-T5 ingredients list .

P1: Posso fazer um pedido de amostra?

Yes, there is no MOQ limited, one sample order is ok.

Q2: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.
